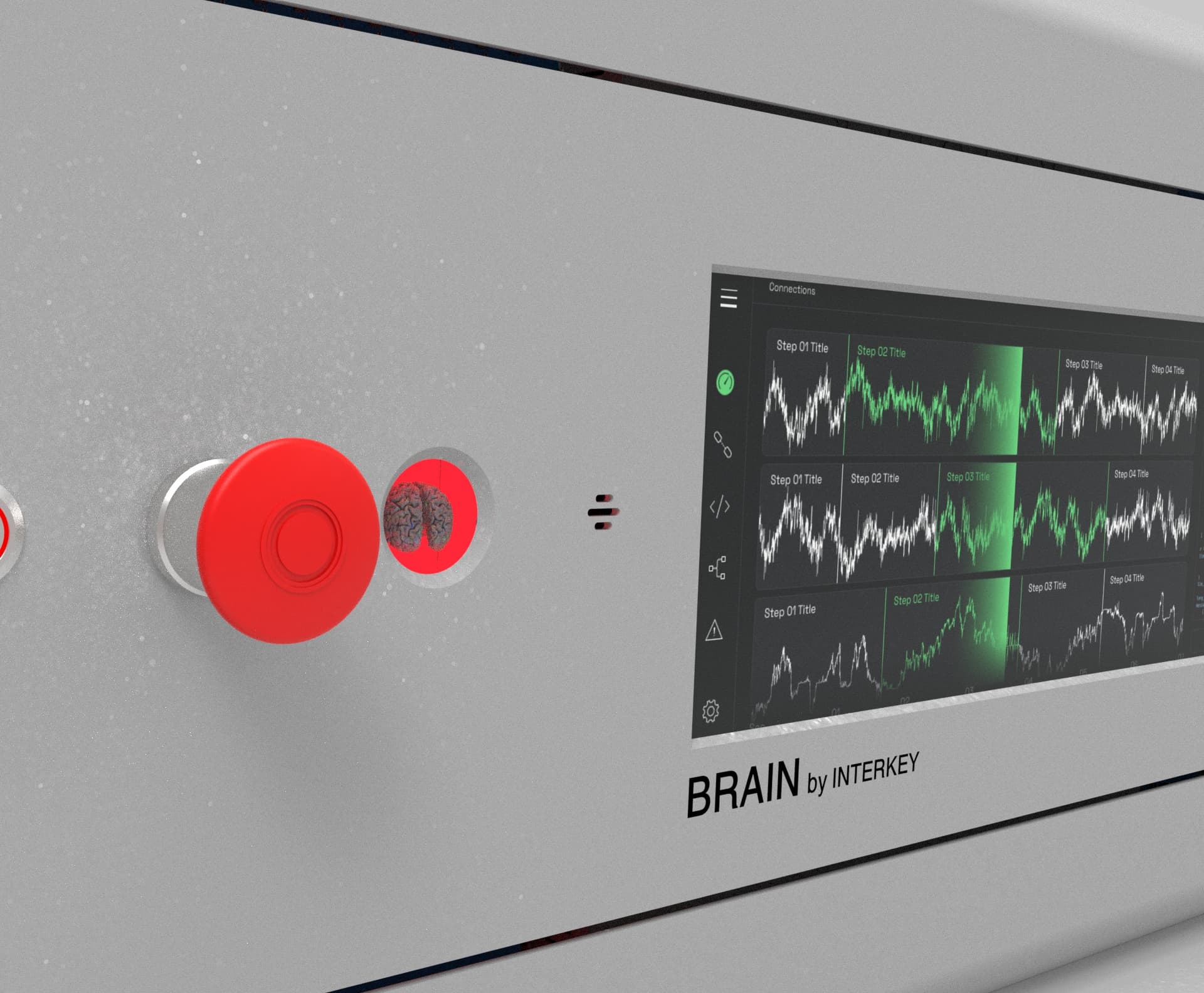

DISPLAY
14-inch status panel
A shop-floor-visible Qt/QML panel shows live trends, alarms, and system status across a 3840x1100 widescreen display.
THE BRAIN REVOLUTION
The industrial control system for teams and agents
A vertically integrated PLC cabinet. Describe a machine in plain language and Brain generates the control system, validates every change, guides commissioning, runs safely, and recovers from failures — autonomously.
brain.local / admin / dashboard
Live recording
Air-gapped • EU AI Act-aligned • Five-tier safety authorization • Full audit trail

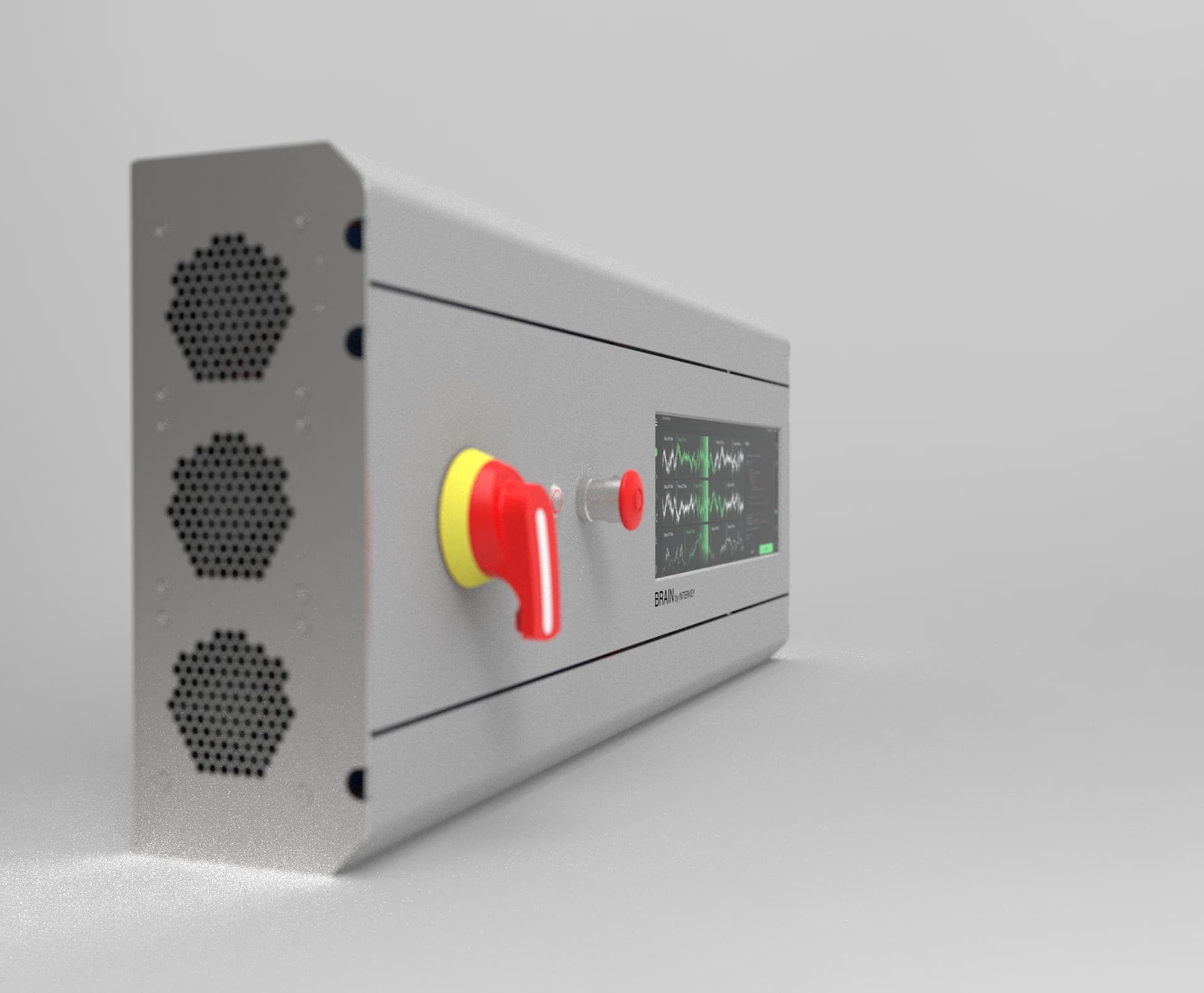

HARDWARE
Ships as a cabinet. Built to last a decade.
A fully enclosed industrial cabinet -- controller, 220 I/O points, power distribution, emergency stop, status display, and the AI co-processor -- pre-wired and pre-tested. Mount it, connect it, describe the machine.
Main controller
CompuLab SBC-IOT-iMX8Plus
AI co-processor
NVIDIA Jetson Orin Nano Super
I/O points
220
Scan cycle
100 ms

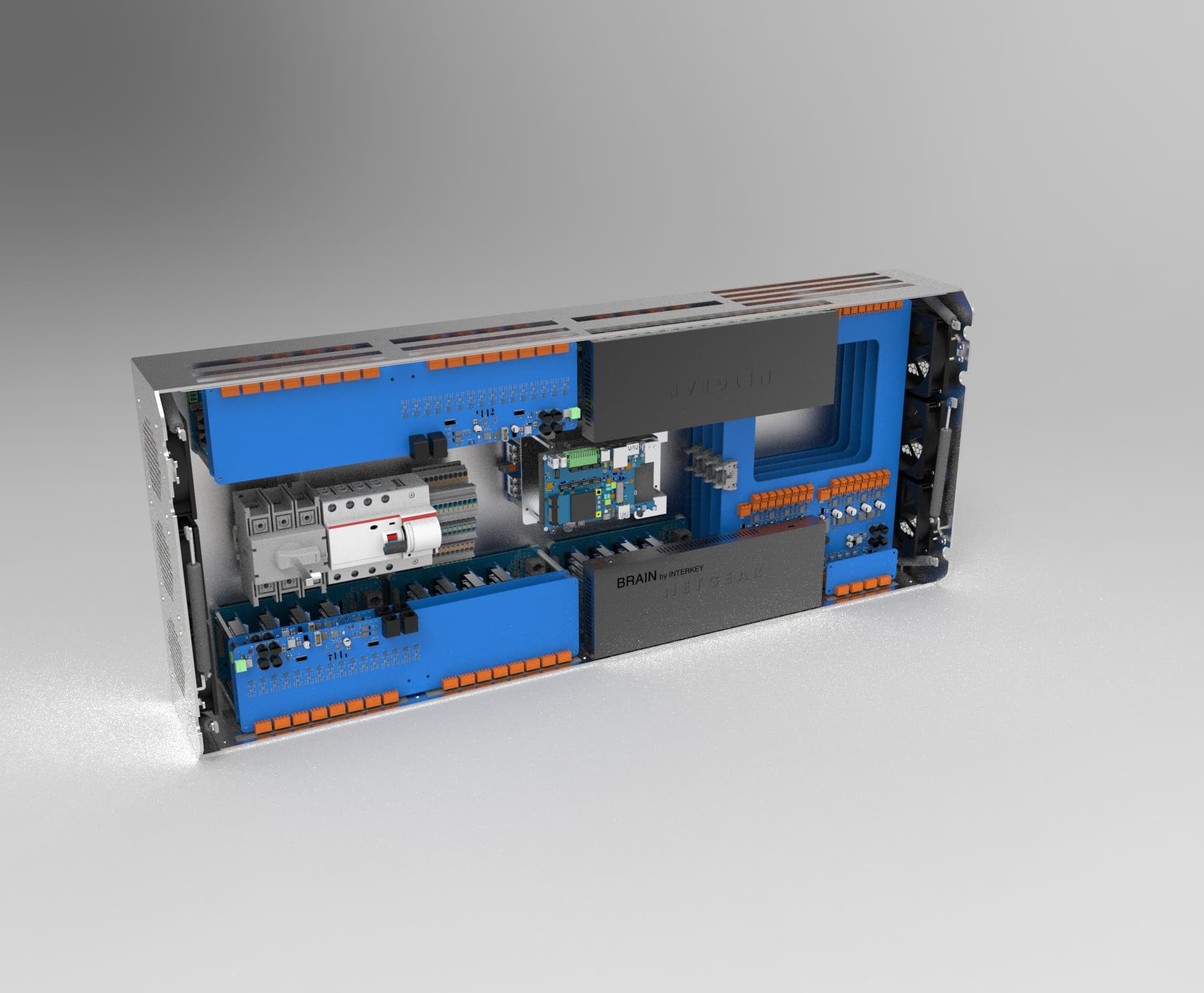

I/O
Modular I/O stack
Custom STM32-based I/O boards for RTD, DI, DO, SSR, and power supply -- all on a single RS-485 bus with Modbus RTU.

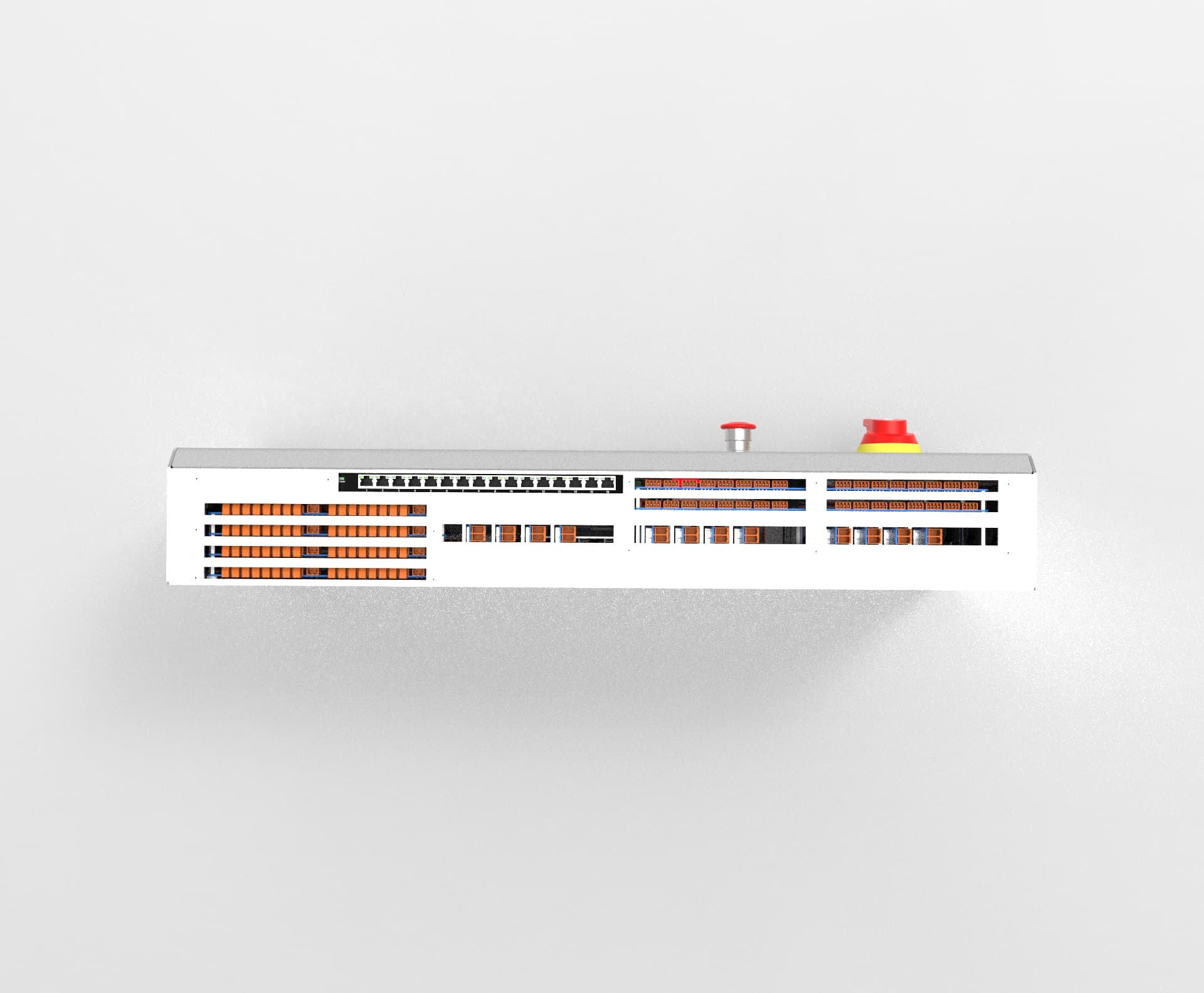

WIRING
Pre-wired, pre-tested
64 RTD + 64 DI + 64 DO + 24 SSR + 2 PSU + 2 camera channels, terminated on labelled terminal blocks ready for field wiring.
VERTICALLY INTEGRATED
A new kind of PLC. Vertically integrated from the PCB to the AI agent, Interkey Brain replaces the SCADA stack, the HMI panel, and the engineering workstation with a single system that ships ready to run.
AI AGENT
ADMIN / HMI / MOBILE
PLC ENGINE
BRAIN BACKEND (GO)
MODBUS RTU / RS-485
I/O BOARDS (STM32)
ARCHITECTURE
Vertically integrated
Hardware, firmware, and software designed to work together. 220 I/O points, real-time scan, and a browser IDE -- out of the box.
AI
AI AGENTS
Powered by AI agents
Describe a machine in plain English and Brain writes the program, builds the HMI, and configures alarms. Zero PLC programming required.
100ms
scan cycle
DEPLOYMENT
Self-contained deploy
Boots to a fully operational state with no external dependencies. Commission a cabinet in hours, not weeks.
ONE PLATFORM — ANY INDUSTRIAL PROCESS
Process
Continuous PID, recipes, batch, regulatory traceability.
Discrete
Conveyors, packaging, assembly, vision-driven QA.
Building
HVAC, energy, BMS, multi-site fleet visibility.
Pharma & Regulated
21 CFR Part 11, audit trails, validated changes.
AI PLC AGENT
Describe a machine, ship a control system
Tell Brain what you're building. It reads the live system, writes an IEC 61131-3 program, creates an operator HMI, configures alarms, tunes PID loops, and starts the engine -- all streamed in real time. This is the engineering agent. Brain also has a commissioning agent for startup, a watchdog for monitoring, a responder for autonomous fault handling, and an optimizer for daily tuning.
See Agents →OP
Build a freeze dryer with 4 heaters on SSR0–SSR3, RTD0–RTD3 feedback, PID at 60°C, alarm if any heater exceeds 80°C.
AI
Brain Agent · streaming tool_use
→read_tags(SSR0–SSR3, RTD0–RTD3)running…
→create_program(program=FreezeDryer.st (4 PID loops))
→create_hmi_page(page=freeze-dryer-operator)
→configure_alarm(TEMP.RTD0..3 > 80.0)
→create_pid_loop(SP=60.0 · PV=RTD · OUT=SSR)
→start_program(program=FreezeDryer)
→verify(run 30s simulation)
FIVE AGENTS
Engineering, Commissioning, Watchdog, Responder, Optimizer
Five specialized AI agents share one tag system, one 5-tier safety model, and one audit trail. Engineering generates control systems from natural language. Commissioning verifies every channel. Watchdog scans health every 5 minutes. Responder reacts to alarms in real time. Optimizer learns from historian data daily. The closed engineering-to-operation loop the incumbents do not have.
See Agents →Step 1 · Generate
Engineering
Natural language to IEC 61131-3 programs, HMI, alarms, PIDs.
Step 2 · Validate
Commissioning
Channel-by-channel verification of every I/O point on startup.
Step 3 · Monitor
Watchdog
5-minute health scans across PLC, drivers, network, and cloud.
Step 4 · React
Responder
Real-time alarm response inside the Tier-3 safety envelope.
Step 5 · Learn
Optimizer
Daily tuning from historian data — PID, setpoints, schedules.
Loop closes — Optimizer feeds Engineering with learned tuning
SAFETY BY DESIGN
Five tiers of AI authorization
Read operations are always allowed. Safety-critical actions require admin approval and explicit confirmation. Auto-lock after 3 Tier-3 actions in 60 seconds. Emergency stop endpoint kills all automation instantly. Full audit trail.
AI Agent Authorization Model · Live
/ai/safety/tiers
0
Category
Read
NONE
Authorization
Always allowed
Example
“What's the current temperature?”
1
Category
Inform
NONE
Authorization
Always allowed
Example
“Show me the alarm log”
2
Category
Configure
LOW
Authorization
Agent enabled (default)
Example
“Create a new tag for tank 3”
3
Category
Control
MED
Authorization
Operator approval or pre-approved rule
Example
“Start the heater at 60°C”
4
Category
Safety-Critical
HIGH
Authorization
Admin approval + confirmation
Example
“Disable the overpressure alarm”
Auto-lock · 3×T3/60sPOST /ai/emergency-stopFull audit trailApprove & Remember
INDUSTRIAL RELIABILITY
When AI fails, the PLC keeps running
Hardware watchdog on every I/O board (2-second timeout). Software circuit breaker isolates AI without affecting PLC. Immutable audit trail in SQLite WAL mode. Full project backup/restore with one-click rollback. Degraded-mode operation: PLC engine, drivers, and alarm processing all run independently of AI, network, or backend.
See Reliability →Always running
Hardware watchdog
2s timeout per I/O board
PLC engine
Drivers, scan loop, alarms
Software watchdog
Circuit breaker isolates AI
Cabinet
Brain
Local-first
May fail — system keeps running
AI agents
Engineering, Optimizer, Responder
Cloud / network
Backups, telemetry, updates
✓ SQLite WAL audit trail
✓ One-click rollback
✓ Degraded-mode operation
PLC PROGRAMMING
Program in any paradigm
Ladder Logic, Structured Text, Function Block Diagram, Sequential Function Chart, and ISA-88 Batch Control -- all editable through the browser IDE, with live simulation and a full propose, review, approve, deploy workflow.
NETWORK 1 · STARTUP LOGIC
energized latched inactive
HMI BUILDER
Drag, drop, deploy
Build custom operator screens from real faceplates -- Motors, Tanks, PIDs, Valves, Zones, Conveyors. Bind them to tags, publish to the tablet, and ship operator-ready HMI pages without writing a line of code.
Prompt
· Interkey Brain HMI Builder
Build a process screen: chamber temperature, tank level, setpoint, live trend, active alarms, and recipe progress.
Press BUILD to generate the screen from this prompt.
VISION AND AUDIO
Monitoring that teaches itself
An NVIDIA Jetson co-processor runs self-learning anomaly detection on every camera and microphone. No annotations, no model training, no programming -- Brain learns what normal looks like and tells you when it stops.
CAM0 · 1920×1080 · 30fps
REC
Jetson Orin Nano Super · TRT · 28.3 msObjects: 1Model: self-learned v2.1
ANOMALY SCORE
0.12
threshold 0.40 · nominal
LIVE EVENTS
16:42:18●product detected
16:42:05●operator in frame
16:41:47●baseline updated
16:41:22●mic: 62 dB nominal
TRAINING
Self-learning · 0 annotations
FOUR INTERFACES
One system, every surface
An admin dashboard for engineers, a tablet HMI for operators, a mobile PWA for commissioning, and a 14-inch status panel for the shop floor -- each optimized for its audience, all backed by the same tags and the same realtime engine.
Production view · Recipe control · Sequence editor · Trend charts · AI Vision · Alarms
brain.local / production
Live recording
PROTOCOLS
Every industrial protocol, built in
Modbus RTU and TCP, MQTT with TLS, OPC UA (including Pub/Sub), SparkPlug B for SCADA, and a cloud MQTT bridge with offline buffering. No add-on modules, no licences, no gateway boxes.
Modbus RTU
Server + Client
RS485 · 115200 baud · 8 function codes
Packets
420
Latency
3.0 ms
Modbus TCP
Server + Client
MBAP · up to 125 reg/read
Packets
317
Latency
3.7 ms
MQTT
Publish + Subscribe
Mosquitto · TLS · QoS 0/1/2
Packets
714
Latency
4.3 ms
OPC UA
Server + Client + PubSub
Numeric/String/GUID nodes · Part 14
Packets
291
Latency
4.5 ms
SparkPlug B
Publisher
Protobuf · SCADA interoperability
Packets
243
Latency
4.4 ms
Cloud MQTT Bridge
Publisher
AWS IoT · Azure · mTLS · offline buffer
Packets
245
Latency
3.9 ms
ALARMS
Catch problems before operators do
A unified alarm table with severity, grouping, acknowledgement, and full audit history. Push notifications by email, WebSocket, and SMS -- plus autonomous Responder rules that can shut down a heater the moment it overshoots.
ALARMS
5 active2 unacknowledgedRotating · new event every 6s
CRIT16:42:18TEMP.RTD2.VALUEHigh-high · 87.4°C (limit 85.0)
WARN16:38:44SSR.SSR3.CURRENTCurrent trend above baseline (+18%)
WARN16:35:12PS.PS0.VOLTAGESupply droop · 23.1V (nominal 24.0)✓ ACK
INFO16:31:09NET.LINK.STATUSOPC UA client reconnected✓ ACK
INFO16:28:55PROG.FreezeDryerPhase transition: CHARGE → FREEZE✓ ACK
FROM OUR LAUNCH CUSTOMER
“Brain built a working freeze-drying cycle from a paragraph of plain English. What used to take our engineers a full commissioning week ran on day one.”
WT
Wave Trockensysteme GmbH
First pilot customer -- Wave CC freeze dryer
Built for OEM machine builders, plant operators, and commissioning engineers. From a single cabinet to a fleet of hundreds. Pre-order now →
MIGRATION
Already running Siemens, Rockwell, or Beckhoff? Brain Gateway brings AI to your existing PLCs.
GET STARTED
Built for the future. Available today.
Request a demo cabinet or schedule a call with our engineering team.
